HMC521ALC4

GaAs MMIC I/Q MIXER

HMC521ALC4 Features

* Wide IF Bandwidth: DC - 3.5 GHz Image Rejection: 38 dB LO to RF Isolation: 50 dB High Input IP3: +23 dBm 24 Lead 4x4mm SMT Package: 16mm² General Description The HMC521ALC4 is a compact I/Q MMIC mixer in a leadless “Pb free” RoHS compliant SMT package, which can be used as either an Image Reject Mix

HMC521ALC4 General Description

The HMC521ALC4 is a compact I/Q MMIC mixer in a leadless “Pb free” RoHS compliant SMT package, which can be used as either an Image Reject Mixer or a Single Sideband Upconverter. The mixer utilizes two standard Hittite double balanced mixer cells and a 90 degree hybrid fabricated in a GaAs MESFET pr.

HMC521ALC4 Datasheet (667.89 KB)

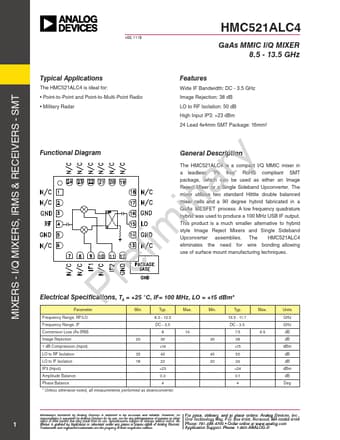

Preview of HMC521ALC4 PDF

Datasheet Details

Part number:

HMC521ALC4

Manufacturer:

Analog Devices ↗

File Size:

667.89 KB

Description:

Gaas mmic i/q mixer.
MIXERS - I/Q MIXERS, IRMS & RECEIVERS - SMT Preliminary v00.1115 Typical Applications The HMC521ALC4 is ideal for:

* Point-to-Point and Point.
