HMC524ALC3B - GaAs MMIC I/Q MIXER

Product Overview

Hittite Microwave

📥 Download Datasheet

HMC524ALC3B GaAs MMIC I/Q MIXER by Hittite Microwave - Datasheet Preview — Datasheet preview – HMC524ALC3B

Datasheet Details

Part number	HMC524ALC3B
Manufacturer	Hittite Microwave
File Size	325.72 KB
Description	GaAs MMIC I/Q MIXER
Datasheet	HMC524ALC3B Datasheet

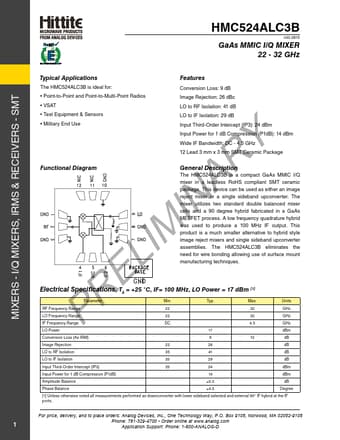

Additional preview pages of the HMC524ALC3B datasheet.

Product details

Description

The HMC524ALC3B is a compact GaAs MMIC I/Q mixer in a leadless RoHS compliant SMT ceramic package.

Features

The HMC524ALC3B is ideal for:.
Point-to-Point and Point-to-Multi-Point Radios Conversion Loss: 9 dB Image Rejection: 26 dBc.
VSAT.
Test Equipment & Sensors LO to RF Isolation: 41 dB LO to IF Isolation: 29 dB.
Military End Use IMINARYFunctional Diagram Input Third-Order Intercept (IP3): 24 dBm Input Power for 1 dB Compression (P1dB): 14 dBm Wide IF Bandwidth: DC - 4.5 GHz 12 Lead 3 mm x 3 mm SMT Ceramic Package General.
