HMC524LC3B Datasheet, Mixer, Analog Devices

HMC524LC3B Features

  • Mixer Wide IF Bandwidth: DC - 4.5 GHz Image Rejection: 20 dB LO to RF Isolation: 45 dB High Input IP3: +20 dBm 12 Lead 3x3mm SMT Package: 9mm² General Description The HMC524LC3B is a compact

PDF File Details

Part number:

HMC524LC3B

Manufacturer:

Analog Devices ↗

File Size:

331.81kb

Download:

📄 Datasheet

Description:

Gaas mmic i/q mixer. The HMC524LC3B is a compact I/Q MMIC mixer which can be used as either an Image Reject Mixer or a Single Sideband Upconverter. The ch

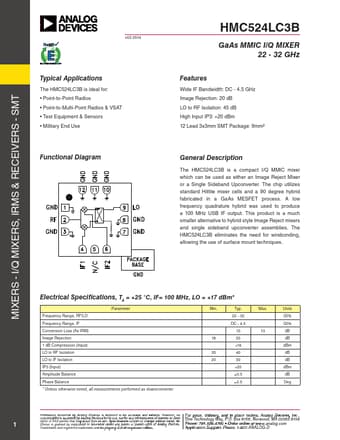

Datasheet Preview: HMC524LC3B 📥 Download PDF (331.81kb)
Page 2 of HMC524LC3B Page 3 of HMC524LC3B

HMC524LC3B Application

  • Applications The HMC524LC3B is ideal for:
  • Point-to-Point Radios
  • Point-to-Multi-Point Radios & VSAT
  • Test Equipment & Se
