HMC519 Datasheet - Hittite Microwave Corporation

HMC519 GaAs PHEMT MMIC LOW NOISE AMPLIFIER

The HMC519 chip is a high dynamic range GaAs PHEMT MMIC Low Noise Amplifier (LNA) which covers the 18 to 32 GHz frequency range. The HMC519 provides 15 dB of small signal gain, 2.8 dB of noise figure and has an output IP3 greater than 23 dBm. The chip can easily be integrated into hybrid or MCM asse.

HMC519_HittiteMicrowaveCorporation.pdf

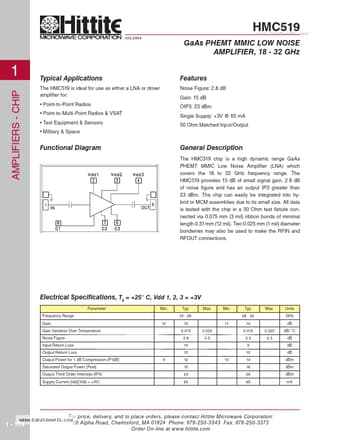

Preview of HMC519 PDF
HMC519 Datasheet Preview Page 2 HMC519 Datasheet Preview Page 3

Datasheet Details

Part number:

HMC519

Manufacturer:

Hittite Microwave Corporation

File Size:

360.34 KB

Description:

Gaas phemt mmic low noise amplifier.
