HMC590

high dynamic range GaAs PHEMT MMIC

HMC590 Features

* Saturated Output Power: +31.5 dBm @ 25% PAE Output IP3: +41 dBm Gain: 24 dB DC Supply: +7.0 V @ 820 mA 50 Ohm Matched Input/Output Die Size: 2.47 mm x 1.33 mm x 0.1 mm Functional Diagram General Description The HMC590 is a high dynamic range GaAs PHEMT MMIC 1 Watt Power Amplifier which operates fr

HMC590 General Description

The HMC590 is a high dynamic range GaAs PHEMT MMIC 1 Watt Power Amplifier which operates from 6 to 10 GHz. This amplifier die provides 24 dB of gain, +31.5 dBm of saturated power at 25% PAE from a +7.0V supply. The RF I/Os are DC blocked and matched to 50 Ohms for ease of integration into Multi-Chip.

HMC590 Datasheet (412.03 KB)

Preview of HMC590 PDF

Datasheet Details

Part number:

HMC590

Manufacturer:

Hittite Microwave Corporation

File Size:

412.03 KB

Description:

High dynamic range gaas phemt mmic.

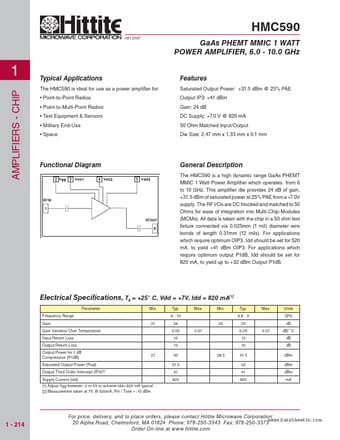

HMC590 v01.0107 GaAs PHEMT MMIC 1 WATT POWER AMPLIFIER, 6.0 - 10.0 GHz 1 AMPLIFIERS - CHIP Typical Applications The HMC590 is ideal for use as a po.
