HMC590LP5E Datasheet, Mmic, Analog Devices

HMC590LP5E Features

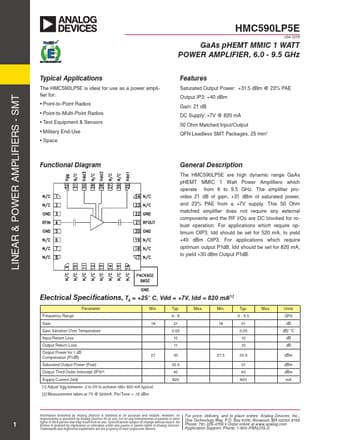

• Mmic Saturated Output Power: +31.5 dBm @ 23% PAE Output IP3: +40 dBm Gain: 21 dB DC Supply: +7V @ 820 mA 50 Ohm Matched Input/Output QFN Leadless SMT Packages, 25 mm2 Functional Diagram Ge

PDF File Details

Part number:

HMC590LP5E

Manufacturer:

Analog Devices ↗

File Size:

1.22MB

Download:

📄 Datasheet

Description:

Gaas phemt mmic. The HMC590LP5E are high dynamic range GaAs pHEMT MMIC 1 Watt Power Amplifiers which operate from 6 to 9.5 GHz. The amplifier provides

HMC590LP5E Application

• Applications The HMC590LP5E is ideal for use as a power amplifier for:
• Point-to-Point Radios
• Point-to-Multi-Point Radios
