HMC592 - GaAs PHEMT MMIC

HMC592 Description

LINEAR & POWER AMPLIFIERS - CHIP v02.0109 HMC592 GaAs PHEMT MMIC 1 WATT POWER AMPLIFIER, 10 - 13 GHz Typical Applications .
The HMC592 is a high dynamic range GaAs PHEMT MMIC 1 Watt Power Amplifier which operates from 10 to 13 GHz.

HMC592 Features

* The HMC592 is ideal for use as a power amplifier for: Saturated Output Power:
* Point-to-Point Radios +31 dBm @ 21% PAE 3
* Point-to-Multi-Point Radios
* Test Equipment & Sensors Output IP3: +38 dBm Gain: 19 dB
* Military End-Use DC Supply: +7V @ 750 mA

📥 Download Datasheet

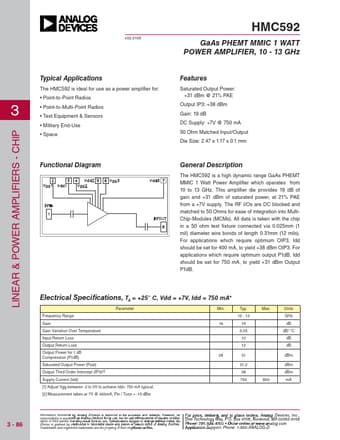

Preview of HMC592 PDF
datasheet Preview Page 2 datasheet Preview Page 3
