HMC590LP5 Datasheet, Mmic, Hittite Microwave Corporation

HMC590LP5 Features

  • Mmic Saturated Output Power: +31.5 dBm @ 23% PAE Output IP3: +40 dBm Gain: 21 dB DC Supply: +7.0 V @ 820 mA 50 Ohm Matched Input/Output QFN Leadless SMT Packages, 25 mm2 Functional Diagram

PDF File Details

Part number:

HMC590LP5

Manufacturer:

Hittite Microwave Corporation

File Size:

408.30kb

Download:

📄 Datasheet

Description:

High dynamic range gaas phemt mmic. The HMC590LP5 & HMC590LP5E are high dynamic range GaAs PHEMT MMIC 1 Watt Power Amplifiers which operate from 6 to 9.5 GHz. The amplif

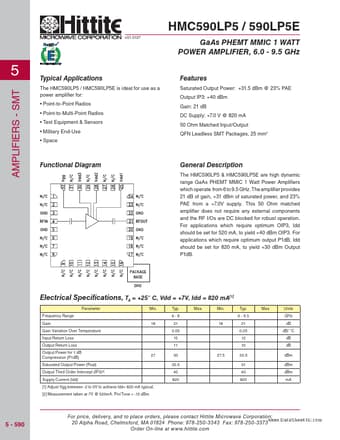

Datasheet Preview: HMC590LP5 📥 Download PDF (408.30kb)
Page 2 of HMC590LP5 Page 3 of HMC590LP5

HMC590LP5 Application

  • Applications The HMC590LP5 / HMC590LP5E is ideal for use as a power amplifier for:
  • Point-to-Point Radios
  • Point-to-Multi-Point Ra
