HMC940LC4B

1:4 FANOUT BUFFER

HMC940LC4B Features

* Inputs Terminated Internally in 50 Ohms Differential Inputs are DC Coupled Propagation Delay: 101 ps Fast Rise and Fall Times: 26 / 25 ps Programmable Differential Output Voltage Swing: 600 - 1400 mV Power Dissipation: 440 mW 24 Lead Ceramic 4x4 mm SMT Package: 16 mm2 General Description The HMC940L

HMC940LC4B General Description

The HMC940LC4B is a 1:4 Fanout Buffer designed to support data transmission rates up to 13 Gbps, and clock frequencies as high as 13 GHz. All differential inputs and outputs are DC coupled and terminated on chip with 50 Ohm resistors to ground. The outputs may be used in either single-ended or diffe.

HMC940LC4B Datasheet (951.13 KB)

Preview of HMC940LC4B PDF

Datasheet Details

Part number:

HMC940LC4B

Manufacturer:

Analog Devices ↗

File Size:

951.13 KB

Description:

1:4 fanout buffer.

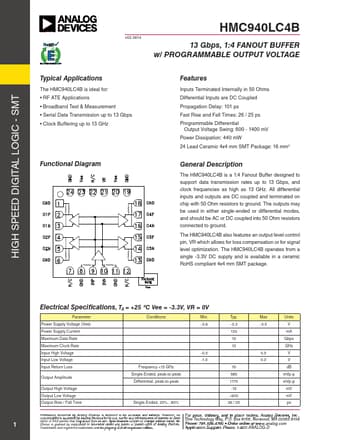

High Speed Digital Logic - SMT v02.0614 HMC940LC4B 13 Gbps, 1:4 FANOUT BUFFER w/ PROGRAMMABLE OUTPUT VOLTAGE Typical Applications The HMC940LC4B is.
