HMC941ALP4E

0.5 dB LSB GaAs MMIC

HMC941ALP4E Features

* 0.5 dB LSB Steps to 15.5 dB Single Positive Control Line Per Bit ±0.5 dB Typical Bit Error High Input IP3: +45 dBm 16mm2 Leadless SMT Plastic Package General Description The HMC941ALP4E is a broadband 5-bit GaAs IC digital attenuators in low cost leadless surface mount packages. Covering 0.1 to 33.0

HMC941ALP4E General Description

The HMC941ALP4E is a broadband 5-bit GaAs IC digital attenuators in low cost leadless surface mount packages. Covering 0.1 to 33.0 GHz, the insertion loss is less than 4 dB typical. The attenuator bit values are 0.5 (LSB), 1, 2, 4, 8, for a total attenuation of 15.5 dB. Attenuation accuracy is excel.

HMC941ALP4E Datasheet (475.98 KB)

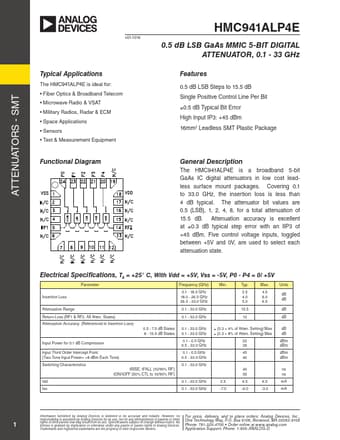

Preview of HMC941ALP4E PDF

Datasheet Details

Part number:

HMC941ALP4E

Manufacturer:

Analog Devices ↗

File Size:

475.98 KB

Description:

0.5 db lsb gaas mmic.
Attenuators - SMT v01.1016 Typical Applications The HMC941ALP4E is ideal for:

* Fiber Optics & Broadband Telecom

* Microwave Radio & .
