HMC942LP4E Datasheet, Mmic, Analog Devices

HMC942LP4E Features

  • Mmic High Output Power: +21 dBm Low Input Power Drive: 0 to +6 dBm Fo Isolation: >45 dBc Single Supply: +4.5V @ 214 mA 24 Lead 4x4 mm SMT Package: 16 mm² Functional Diagram General Descrip

PDF File Details

Part number:

HMC942LP4E

Manufacturer:

Analog Devices ↗

File Size:

401.16kb

Download:

📄 Datasheet

Description:

Smt gaas mmic. The HMC942LP4E is a x2 active broadband frequency multiplier utilizing GaAs pHEMT technology in a leadless RoHS compliant SMT package

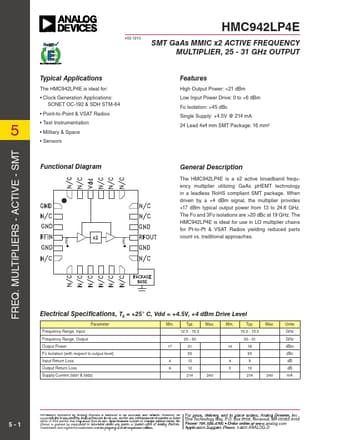

Datasheet Preview: HMC942LP4E 📥 Download PDF (401.16kb)
Page 2 of HMC942LP4E Page 3 of HMC942LP4E

HMC942LP4E Application

  • Applications The HMC942LP4E is ideal for:
  • Clock Generation Applications: SONET OC-192 & SDH STM-64
  • Point-to-Point & VSAT Radios
