HMC941

0.5dB LSB GaAs MMIC 5-BIT DIGITAL ATTENUATOR

HMC941 Features

* 0.5 dB LSB Steps to 15.5 dB Single Positive Control Line Per Bit ±0.5 dB Typical Bit Error High Input IP3: +45 dBm Die Size: 2.29 x 0.95 x 0.1 mm Functional Diagram General Description The HMC941 die is a broadband 5-bit GaAs IC digital attenuator MMIC chip. Covering 0.1 to 30 GHz, the insertion l

HMC941 General Description

The HMC941 die is a broadband 5-bit GaAs IC digital attenuator MMIC chip. Covering 0.1 to 30 GHz, the insertion loss is less than 4 dB typical. The attenuator bit values are 0.5 (LSB), 1, 2, 4, 8, for a total attenuation of 15.5 dB. Attenuation accuracy is excellent at less than ± 0.5 dB typical ste.

HMC941 Datasheet (355.02 KB)

Preview of HMC941 PDF

Datasheet Details

Part number:

HMC941

Manufacturer:

Hittite Microwave Corporation

File Size:

355.02 KB

Description:

0.5db lsb gaas mmic 5-bit digital attenuator.

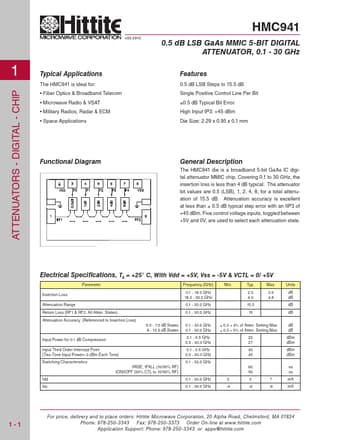

ATTENUATORS - DIGITAL - CHIP HMC941 v00.0910 0.5 dB LSB GaAs MMIC 5-BIT DIGITAL ATTENUATOR, 0.1 - 30 GHz 1 Typical Applications The HMC941 is idea.
