HMC941A

0.5dB LSB GaAs MMIC 5-BIT DIGITAL ATTENUATOR

HMC941A Features

* 0.5 dB LSB Steps to 15.5 dB Single Positive Control Line Per Bit ±0.5 dB Typical Bit Error High Input IP3: +45 dBm Die Size: 2.35 x 1 x 0.1 mm Functional Diagram General Description The HMC941A die is a broadband 5-bit GaAs IC digital attenuator MMIC chip. Covering 0.1 to 30 GHz, the insertion los

HMC941A General Description

The HMC941A die is a broadband 5-bit GaAs IC digital attenuator MMIC chip. Covering 0.1 to 30 GHz, the insertion loss is less than 4 dB typical. The attenuator bit values are 0.5 (LSB), 1, 2, 4, 8, for a total attenuation of 15.5 dB. Attenuation accuracy is excellent at less than ± 0.5 dB typical st.

HMC941A Datasheet (279.33 KB)

Preview of HMC941A PDF

Datasheet Details

Part number:

HMC941A

Manufacturer:

Hittite Microwave Corporation

File Size:

279.33 KB

Description:

0.5db lsb gaas mmic 5-bit digital attenuator.

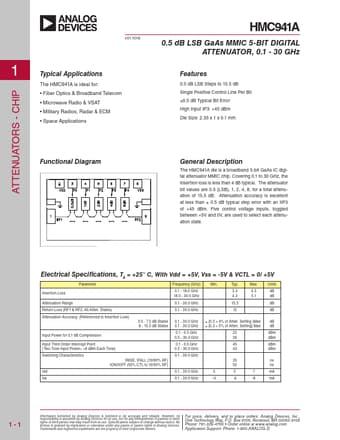

ATTENUATORS - CHIP HMC941A v01.1016 0.5 dB LSB GaAs MMIC 5-BIT DIGITAL ATTENUATOR, 0.1 - 30 GHz 1 Typical Applications The HMC941A is ideal for: <.
