LTC2879X Datasheet - Analog Devices

LTC2879X RS485/RS422 Transceiver

The LTC®2879X is a rugged RS485/RS422 transceiver designed to operate over a wide temperature range of *55°C to 175°C. Special processing .

LTC2879X Features

* nn Guaranteed Operation from

* 55°C to 175°C nn Fully Tested at 175°C nn Protected from Overvoltage Line Faults to ±60V nn ±52kV ESD Interface Pins, ±15kV All Other Pins nn Level 4 IEC61000-4-4 Electrical Fast Transient nn ±25V Working Common Mode Range nn 20Mbps Maximum Baud Rate nn Operates

LTC2879X-AnalogDevices.pdf

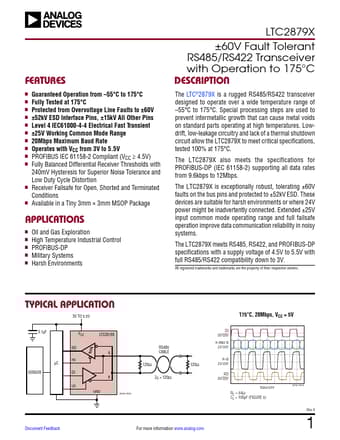

Preview of LTC2879X PDF
LTC2879X Datasheet Preview Page 2 LTC2879X Datasheet Preview Page 3

Datasheet Details

Part number:

LTC2879X

Manufacturer:

Analog Devices ↗

File Size:

2.07 MB

Description:

rs485/rs422 transceiver.
