LTC6813-1

18-Cell Battery Monitor

LTC6813-1 Features

* n Measures Up to 18 Battery Cells in Series n 2.2mV Maximum Total Measurement Error n Stackable Architecture for High Voltage Systems n Built-In isoSPI™ Interface n 1Mb Isolated Serial Communications n Uses a Single Twisted Pair, Up to 100 Meters n Low EMI Susceptibility and Emissions n Bidirectiona

LTC6813-1 General Description

The LTC®6813-1 is a multicell battery stack monitor that measures up to 18 series connected battery cells with a total measurement error of less than 2.2mV. The cell measurement range of 0V to 5V makes the LTC6813-1 suitable for most battery chemistries. All 18 cells can be measured in 290µs, and lo.

LTC6813-1 Datasheet (3.71 MB)

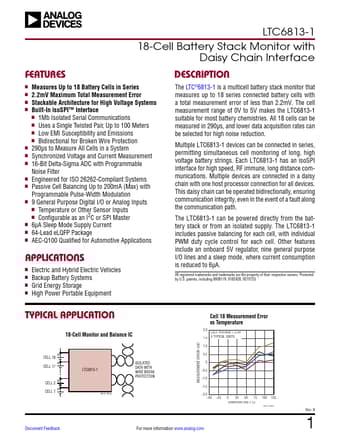

Preview of LTC6813-1 PDF

Datasheet Details

Part number:

LTC6813-1

Manufacturer:

Analog Devices ↗

File Size:

3.71 MB

Description:

18-cell battery monitor.
