LTC6800 Instrumentation Amplifier

LTC6800 Description

LTC6800 Rail-to-Rail Input and Output, Instrumentation Amplifier www.datasheet4u.com .

LTC6800 Features

* s s s s s s s s DESCRIPTIO 116dB CMRR Independent of Gain Maximum Offset Voltage: 100µV Maximum Offset Voltage Drift: 250nV/°C
* 40°C to 125°C Operation Rail-to-Rail Input Range Rail-to-Rail Output Swing Supply Operation: 2.7V to 5.5V Available in an MS8 and 3mm × 3mm × 0.8mm DFN Packages

LTC6800 Applications

* the LTC6800 is available in a 3mm × 3mm × 0.8mm dual fine pitch leadless package (DFN). , LTC and LT are registered trademarks of Linear Technology Corporation. U APPLICATIO S s s s s s Thermocouple Amplifiers Electronic Scales Medical Instrumentation Strain Gauge Amplifiers High Resolution Data

📥 Download Datasheet

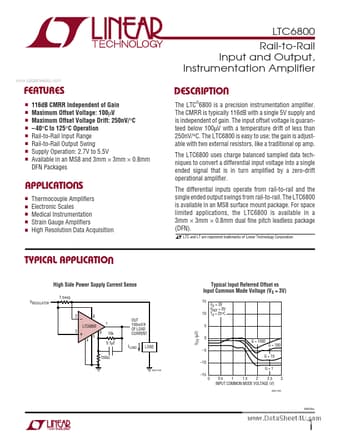

Preview of LTC6800 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC6800
Manufacturer
Linear Technology
File Size
236.67 KB
Datasheet
LTC6800_LinearTechnology.pdf
Description
Instrumentation Amplifier
