LTC6802-1

Multicell Battery Stack Monitor

LTC6802-1 Features

* nn Qualified for Automotive Applications nn Measures Up to 12 Li-Ion Cells in Series (60V Max) nn Stackable Architecture Enables >1000V Systems nn 0.25% Maximum Total Measurement Error nn 13ms to Measure All Cells in a System nn Cell Balancing: nn On-Chip Passive Cell Balancing Switches nn Provision

LTC6802-1 General Description

The LTC®6802-1 is a complete battery monitoring IC that includes a 12-bit ADC, a precision voltage reference, a high voltage input multiplexer and a serial interface. Each LTC6802-1 can measure up to 12 series connected battery cells with an input common mode voltage up to 60V. In addition, multiple.

LTC6802-1 Datasheet (906.30 KB)

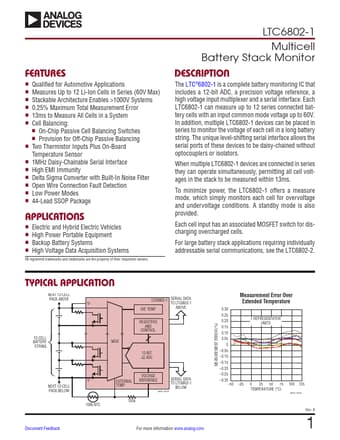

Preview of LTC6802-1 PDF

Datasheet Details

Part number:

LTC6802-1

Manufacturer:

Linear Technology

File Size:

906.30 KB

Description:

Multicell battery stack monitor.
