LTC6992-1 Voltage-Controlled PWM

Analog Devices

Description

.
The LTC®6992 is a silicon oscillator with an easy-to-use analog voltage-controlled pulse width modulation (PWM) capability.

📥 Download Datasheet

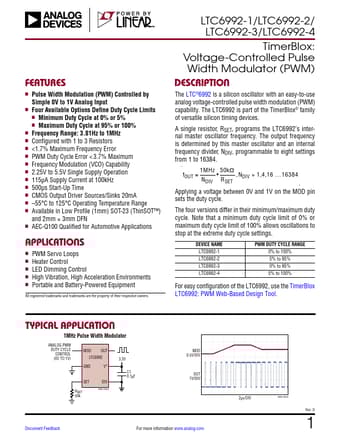

LTC6992-1 Datasheet Preview — Preview of LTC6992-1 PDF

Datasheet Specifications

Part number: LTC6992-1
Manufacturer: Analog Devices ↗
File Size: 1.32 MB
Datasheet: LTC6992-1-AnalogDevices.pdf
Description: Voltage-Controlled PWM

Features

* n Pulse Width Modulation (PWM) Controlled by Simple 0V to 1V Analog Input n Four Available Options Define Duty Cycle Limits n Minimum Duty Cycle at 0% or 5% n Maximum Duty Cycle at 95% or 100% n Frequency Range: 3.81Hz to 1MHz n Configured with 1 to 3 Resistors n

Applications

* APPLICATIONS n PWM Servo Loops n Heater Control n LED Dimming Control n High Vibration, High Acceleration Environments n Portable and Battery-Powered Equipment All registered trademarks and trademarks are the property of their respective owners. LTC6992-1/LTC6992-2/ LTC6992-3/LTC6992-4 TimerBlox:
