Part number: AIC2300
Manufacturer: Analog Intergrations Corporation
File Size: 198.44KB
Download: 📄 Datasheet
Description: PWM Step-Down DC/DC Converter
* 2.5V to 5.5V Input Voltage Range
* 400mA Guaranteed Output Current
* Up to 95% Efficiency
* Low RDS(ON) Internal Switche: 280mΩ
* No Schottky Diode .
* LCD TV
* Multi-function Peripheral
* Cellular Phones
* CPU I/O Supplies
* Cordless Phones
* PD.

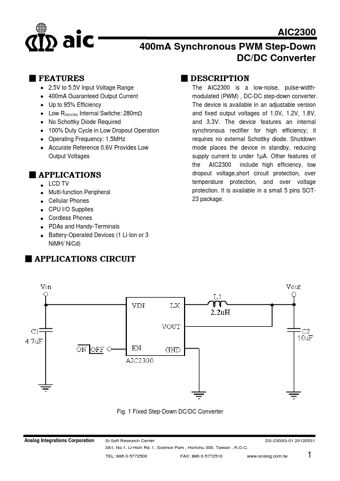

The AIC2300 is a low-noise, pulse-widthmodulated (PWM) , DC-DC step-down converter. The device is available in an adjustable version and fixed output voltages of 1.0V, 1.2V, 1.8V, and 3.3V. The device features an internal synchronous rectifier for hi.
Image gallery
