AIC2302 - PWM Step-Down DC/DC Converter

AIC2302 Description

AIC2302 700mA Synchronous PWM Step-Down DC/DC Converter * .
The AIC2302 is a low-noise, pulse-widthmodulated (PWM), DC-DC step-down converter.

AIC2302 Features

* 2.5V to 5.5V Input Voltage Range
* 700mA Guaranteed Output Current
* Up to 95% Efficiency
* Low RDS(ON) Internal Switche: 280mΩ
* No Schottky Diode Required
* 100% Duty Cycle in Low Dropout Operation
* Operating Frequency: 1.5MHz
* Accurate Reference 0.6V Provides L

AIC2302 Applications

* LCD TV
* Multi-function Peripheral
* Cellular Phones
* CPU I/O Supplies
* Cordless Phones
* PDAs and Handy-Terminals
* Battery-Operated Devices (1 Li-Ion or 3 NiMH/ NiCd)
* APPLICATIONS CIRCUIT

📥 Download Datasheet

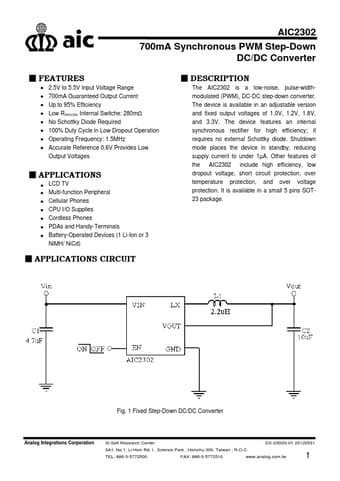

Preview of AIC2302 PDF
datasheet Preview Page 2 datasheet Preview Page 3
