AIC2304 Datasheet, converter equivalent, Analog Intergrations Corporation

AIC2304 Features

  • Converter
  • 2.5V to 5.5V Input Voltage Range
  • 1.0A Guaranteed Output Current
  • Up to 95% Efficiency
  • Low RDS(ON) Internal Switche: 280mΩ
  • No Schottky Di

PDF File Details

Part number:

AIC2304

Manufacturer:

Analog Intergrations Corporation

File Size:

214.49kb

Download:

📄 Datasheet

Description:

Pwm step-down dc/dc converter. The AIC2304 is a low-noise, pulse-widthmodulated (PWM), DC-DC step-down converter. The device is available in an adjustable version a

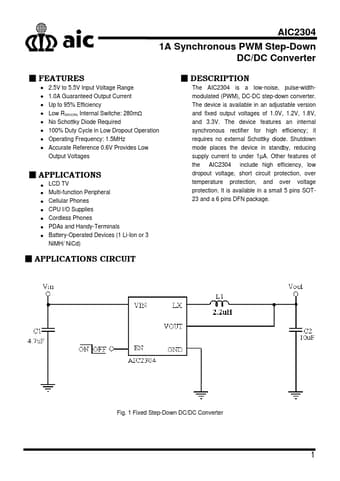

Datasheet Preview: AIC2304 📥 Download PDF (214.49kb)
Page 2 of AIC2304 Page 3 of AIC2304

AIC2304 Application

  • Applications
  • LCD TV
  • Multi-function Peripheral
  • Cellular Phones
  • CPU I/O Supplies
  • Cordless Phones
