AIC2322 Datasheet, converter equivalent, Analog Intergrations Corporation

AIC2322 Features

  • Converter
  • 2.5V to 6V Input Voltage Range
  • Adjustable Output Voltage from 0.8V to Vin
  • 2.0A Guaranteed Output Current
  • 94% Efficiency at Heavy Load (Vin=5V, Vo

PDF File Details

Part number:

AIC2322

Manufacturer:

Analog Intergrations Corporation

File Size:

262.44kb

Download:

📄 Datasheet

Description:

Pwm step-down dc/dc converter. The AIC2322 is a low-noise, pulse-widthmodulated (PWM), DC-DC step-down converter. The device features an internal synchronous rectif

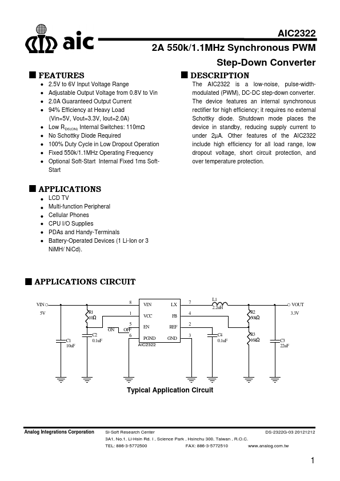

Datasheet Preview: AIC2322 📥 Download PDF (262.44kb)
Page 2 of AIC2322 Page 3 of AIC2322

AIC2322 Application

  • Applications
  • LCD TV
  • Multi-function Peripheral
  • Cellular Phones
  • CPU I/O Supplies
  • PDAs and Handy-Term
