AIC2323 - PWM Step-Down Converter

AIC2323 Description

AIC2323 3.2A 550k/1.1MHz Synchronous PWM * .
The AIC2323 is a low-noise, pulse-widthmodulated (PWM), DC-DC step-down converter.

AIC2323 Features

* 2.5V to 6V Input Voltage Range
* Adjustable Output Voltage from 0.8V to Vin
* 3.2A Guaranteed Output Current
* Up to 95% Efficiency
* Low RDS(ON) Internal Switches: 110mΩ
* No Schottky Diode Required
* 100% Duty Cycle in Low Dropout Operation
* Fixed 550k/1.1MHz Ope

AIC2323 Applications

* LCD TV
* Portable Products
* Wireless and DSL Modems
* Solid-State Drives
* Battery-Operated Devices (1 Li-Ion or 3 NiMH/ NiCd) Analog Integrations Corporation Si-Soft Research Center DS-2323G-03 20121212 3A1, No.1, Li-Hsin Rd. I , Science Park , Hsinchu 300, Taiwan , R. O. C

📥 Download Datasheet

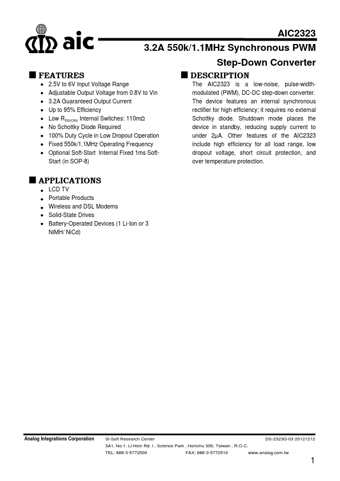

Preview of AIC2323 PDF
