AIC6162 - 0.75A Single Channel USB Switch

Datasheet Summary

Description

The AIC6162 is integrated 85m  high-side power switch for self-powered and bus-powered Universal Serial Bus (USB) applications.

This switch operates with input ranging from 3.2V to 6.5V, making it ideal for 5V system.

Features

  • S.
  • 85m High-Side MOSFET Switch.
  • 0.75A Continuous Load Current.
  • 40A Quiescent Supply Current.
  • 1A Maximum Shutdown Supply Current.
  • 3.2V to 6.5V Input Voltage Range.
  • Open-Drain Over-Current Flag Output.
  • Under-Voltage Lockout.
  • Current-Limit / Short Circuit Protection.
  • Thermal Shutdown Protection under Over Current Condition.
  • Under Voltage Lockout Ensures that Switch is off at Start Up.
  • Soft Start prevents large Inrush Current.

📥 Download Datasheet

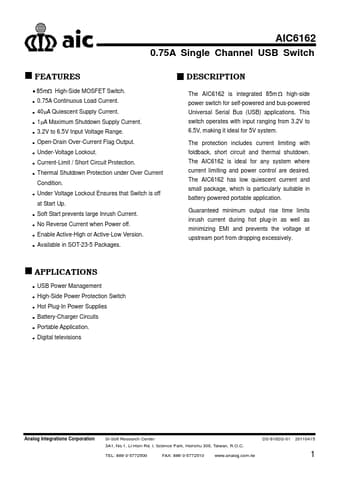

Datasheet preview – AIC6162

Datasheet Details

Part number AIC6162
Manufacturer Analog Intergrations Corporation
File Size 190.17 KB
Description 0.75A Single Channel USB Switch
Datasheet download datasheet AIC6162 Datasheet
Additional preview pages of the AIC6162 datasheet.

📁 Similar Datasheet

  • AIC-010 - PROGRAMMABLE MASS STORAGE CONTROLLER (Adaptec)
  • AIC-010-10 - PROGRAMMABLE MASS STORAGE CONTROLLER (Adaptec)
  • AIC-12S - AIC SERIES AC-DC Power Module (ARCH)
  • AIC-15S - AIC SERIES AC-DC Power Module (ARCH)
  • AIC-24S - AIC SERIES AC-DC Power Module (ARCH)
  • AIC-270 - Encoder/Decoder (adaptec)
  • AIC-3.3S - AIC SERIES AC-DC Power Module (ARCH)
  • AIC-33C94 - Enhanced Scsi Bus Controller (Adaptec)
  • AIC-5S - AIC SERIES AC-DC Power Module (ARCH)
  • AIC-6250 - High-Performance SCSI Protocol (Adaptec)
Other Datasheets by Analog Intergrations Corporation
  • AIC6161 - 0.5A Single Channel USB Switch
  • AIC6163 - 1A Single Channel USB Switch
  • AIC6164 - 1.5A Single Channel USB Switch
  • AIC6166 - Regulatory USB High-Side Power Switch
  • AIC6178 - 1.0A Dual USB High-Side Power Switch
  • AIC6186 - 0.5A Dual USB High-Side Power Switch
  • AIC6188 - 1.0A Dual USB High-Side Power Switch
  • AIC6600 - Off-Line Linear LED Driver

Full PDF Text Transcription

Click to expand full text
AIC6162 0.75A Single Channel USB Switch  FEATURES  85m High-Side MOSFET Switch.  0.75A Continuous Load Current.  40A Quiescent Supply Current.  1A Maximum Shutdown Supply Current.  3.2V to 6.5V Input Voltage Range.  Open-Drain Over-Current Flag Output.  Under-Voltage Lockout.  Current-Limit / Short Circuit Protection.  Thermal Shutdown Protection under Over Current Condition.  Under Voltage Lockout Ensures that Switch is off at Start Up.  Soft Start prevents large Inrush Current.  No Reverse Current when Power off.  Enable Active-High or Active-Low Version.  Available in SOT-23-5 Packages.  DESCRIPTION The AIC6162 is integrated 85m  high-side power switch for self-powered and bus-powered Universal Serial Bus (USB) applications.
