AIC6163 Datasheet - Analog Intergrations Corporation

1A Single Channel USB Switch

AIC6163 Features

* 85m High-Side MOSFET Switch.

* 1A Continuous Load Current.

* 40A Quiescent Supply Current.

* 1A Maximum Shutdown Supply Current.

* 3.2V to 6.5V Input Voltage Range.

* Open-Drain Over-Current Flag Output.

* Under-Voltage Lockout.

* Current-Limit / Short Circuit Pr

AIC6163 General Description

The AIC6163 is integrated 85m  high-side power switch for self-powered and bus-powered Universal Serial Bus (USB) applications. This switch operates with input ranging from 3.2V to 6.5V, making it ideal for 5V system. The protection includes current limiting with foldback, short circuit and thermal.

AIC6163 Datasheet (193.12 KB)

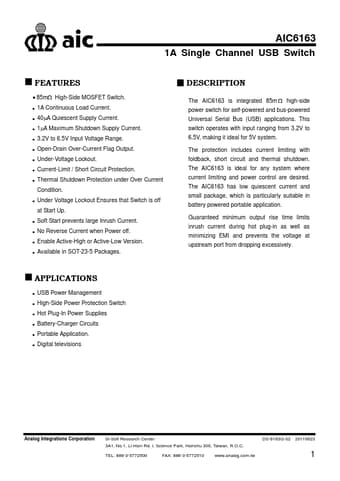

AIC6163 Datasheet Preview — Preview of AIC6163 PDF

Datasheet Details

Part number:

AIC6163

Manufacturer:

Analog Intergrations Corporation

File Size:

193.12 KB

Description:

1a single channel usb switch.
