AIC6166 Datasheet - Analog Intergrations Corporation

Regulatory USB High-Side Power Switch

AIC6166 Features

* 150mΩ (6V Input) High-Side MOSFET Switch z 0.62A/1.25A Continuous Load Current of USB switch z 140μA Typical On-State Supply Current of USB switch z 0.75μA Typical Off-State Supply Current of USB switch z Fault Flag with 8ms filter eliminates false assertions z Under voltage Lockout Ensure

AIC6166 General Description

The AIC6166 is a power switch IC integrated a low dropout linear regulator for bus-powered Universal Serial Bus (USB) applications. The high-side switch of USB power switch is MOSFET with 150m Ω RDS(ON), which meets USB voltage drop requirements for maximum transmission wire length. Multi-purpose op.

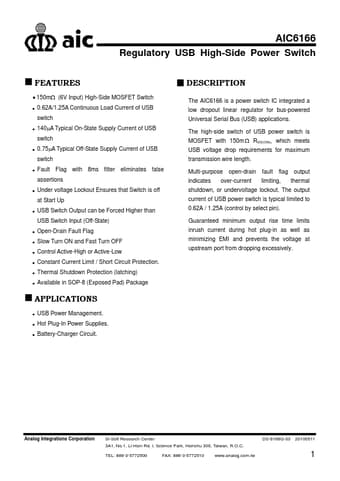

AIC6166 Datasheet (844.14 KB)

AIC6166 Datasheet Preview — Preview of AIC6166 PDF

Datasheet Details

Part number:

AIC6166

Manufacturer:

Analog Intergrations Corporation

File Size:

844.14 KB

Description:

Regulatory usb high-side power switch.
