AIC6178 - 1.0A Dual USB High-Side Power Switch

Product Overview

📥 Download Datasheet

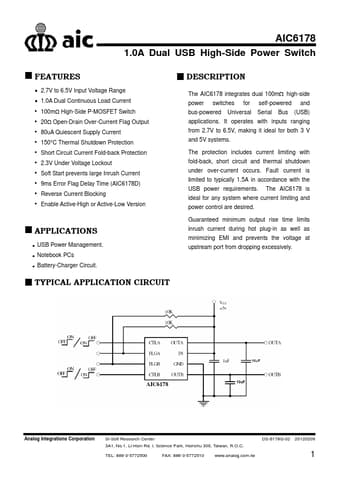

Datasheet preview – AIC6178

Datasheet Details

Part number AIC6178
Manufacturer Analog Intergrations Corporation
File Size 217.84 KB
Description 1.0A Dual USB High-Side Power Switch
Datasheet download datasheet AIC6178 Datasheet
Additional preview pages of the AIC6178 datasheet.

Product details

Description

2.7V to 6.5V Input Voltage Range 1.0A Dual Continuous Load Current 100mΩ High-Side P-MOSFET Switch 20Ω Open-Drain Over-Current Flag Output 80uA Quiescent Supply Current 150°C Thermal Shutdown Protection Short Circuit Current Fold-back Protection 2.3V Under Voltage Lockout Soft Start prevents large Inrush Current 9ms Error Flag Delay Time (AIC6178D) Reverse Current Blocking Enable Acti

Features
