AIC6164 - 1.5A Single Channel USB Switch

Product Overview

Analog Intergrations Corporation

📥 Download Datasheet

AIC6164 1.5A Single Channel USB Switch by Analog Intergrations Corporation - Datasheet Preview — Datasheet preview – AIC6164

Datasheet Details

Part number	AIC6164
Manufacturer	Analog Intergrations Corporation
File Size	176.79 KB
Description	1.5A Single Channel USB Switch
Datasheet	AIC6164 Datasheet

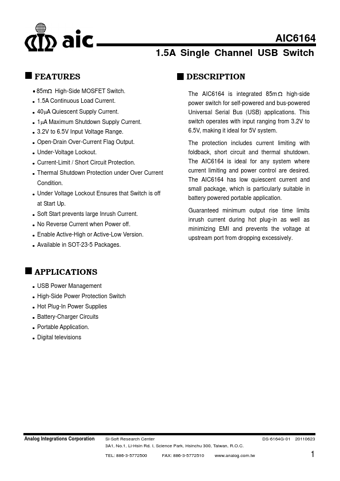

Additional preview pages of the AIC6164 datasheet.

Product details

Description

The AIC6164 is integrated 85m  high-side power switch for self-powered and bus-powered Universal Serial Bus (USB) applications.

Features

S.
85m High-Side MOSFET Switch.
1.5A Continuous Load Current.
40A Quiescent Supply Current.
1A Maximum Shutdown Supply Current.
3.2V to 6.5V Input Voltage Range.
Open-Drain Over-Current Flag Output.
Under-Voltage Lockout.
Current-Limit / Short Circuit Protection.
Thermal Shutdown Protection under Over Current Condition.
Under Voltage Lockout Ensures that Switch is off at Start Up.
Soft Start prevents large Inrush Current.
