LM747A

Dual Operational Amplifier

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part National Semiconductor Corporation LM747AH-MIL Bristol Electronics 8 1 units
$24

LM747A Datasheet (180.78 KB)

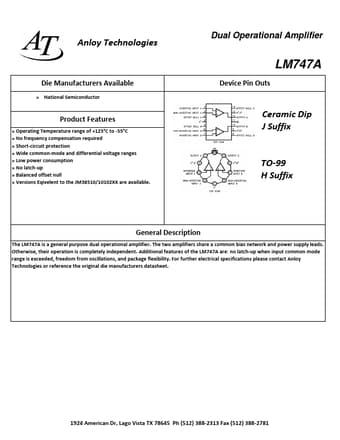

Preview of LM747A PDF Datasheet

Datasheet Details

Part number:

LM747A

Manufacturer:

Anloy Technologies

File Size:

180.78 KB

Description:

Dual operational amplifier

LM747A Features

* » Operating Temperature range of +125°C to -55°C » No frequency compensation required » Short-circuit protection » Wide common-mode and differential voltage ranges » Low power consumption » No latch-up » Balanced offset null » Versions Eqivelent to the JM38510/10102XX are available. Dual Operationa

LM747A General Description

The LM747A is a general purpose dual operational amplifier. The two amplifiers share a common bias network and power supply leads. Otherwise, their operation is completely independent. Additional features of the LM747A are: no latch-up when input common mode range is exceeded, freedom from oscillati.
