LM74704-Q1, LM74703-Q1, Ideal Diode Controller

ADVANCE INFORMATION LM74703-Q1, LM74704-Q1 SNOSDF7 * MAY 2023 LM74703-Q1, LM74704-Q1 Ideal Diode Controller with External FET Health Indicati.
The LM74703-Q1, LM74704-Q1 is an automotive AEC Q100 qualified ideal diode controller which operates in conjunction with an external N-channel MOSFET.

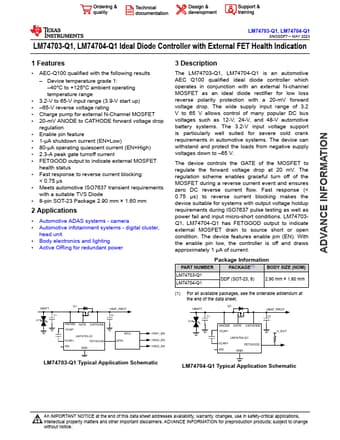

datasheet Preview Page 1 from Datasheet4u.com

LM74703-Q1-etcTI.pdf

LM74704-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: LM74704-Q1, LM74703-Q1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LM74704-Q1, LM74703-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.55 MB

Description:

Ideal Diode Controller

Note:

This datasheet PDF includes multiple part numbers: LM74704-Q1, LM74703-Q1.
Please refer to the document for exact specifications by model.

Features

* AEC-Q100 qualified with the following results
* Device temperature grade 1:
* 40°C to +125°C ambient operating temperature range
* 3.2-V to 65-V input range (3.9-V start up)
* 65-V reverse voltage rating
* Charge pump for external N-Channel M

Applications

* Automotive ADAS systems - camera
* Automotive infotainment systems - digital cluster, head unit
* Body electronics and lighting
* Active ORing for redundant power VBATT C1 D1 Q1 VBAT_PROT C2 ANODE GATE CATHODE VCAP- LM74703-Q1 VCAP+ FETGOOD EN GND MCU GPIO
