LM747 - Dual Operational Amplifier

National Semiconductor

📥 Download Datasheet

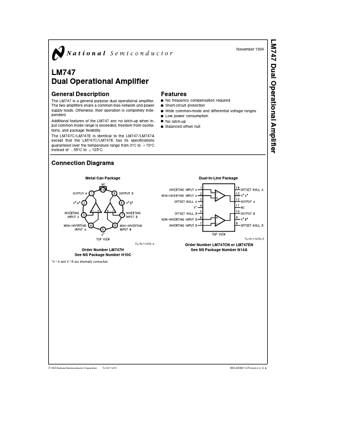

LM747 Datasheet Preview — Preview of LM747 PDF

Datasheet Details

Part number: LM747
Manufacturer: National Semiconductor
File Size: 162.56 KB
Datasheet: LM747_NationalSemiconductor.pdf
Description: Dual Operational Amplifier

LM747 Product details

Description

The LM747 is a general purpose dual operational amplifier The two amplifiers share a common bias network and power supply leads Otherwise their operation is completely independent Additional.

Features

of the LM747 are no latch-up when input common mode range is exceeded freedom from oscillations and package flexibility The LM747C LM747E is identical to the LM747 LM747A except that the LM747C LM747E has its specifications guaranteed over the temperature range from 0 C to a 70 C instead of b55 C to a 125 C Features Y Y Y Y Y Y No frequency compensation required Short-circuit protection Wide common-mode and differential voltage ranges Low power consumption No latch-up Balanced offset null Con.
