APL1117 1A Low Dropout Fast Response Positive Adjustable Regulator

APL1117 Description

www.DataSheet4U.com APL1117 1A Low Dropout Fast Response Positive Adjustable Regulator and Fixed 1.8V, 2.5V, 2.85V and 3.3V .
The APL1117 is a low dropout three-terminal adjustable regulators with 1A output current capability.

APL1117 Features

* Guaranteed Output Voltage Accuracy within 2% Fast Transient Response Guaranteed Dropout Voltage at Multiple Currents Load Regulation : 0.1% Typ. Line Regulation : 0.03% Typ. Low Dropout Voltage : 1.1V

APL1117 Applications

* , the APL1117 has been optimized. The device is available in an adjustable version and fixed output voltages of 1.8V, 2.5V, 2.85V and 3.3V. The output available voltage range of an adjustable version is from 1.25~10.7V with an input supply below 12V. Dropout voltage is guaranteed at a maximum of 1.3

📥 Download Datasheet

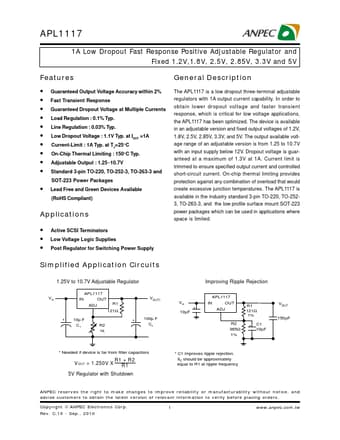

Preview of APL1117 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL1117
Manufacturer
Anpec Electronics
File Size
293.09 KB
Datasheet
APL1117_AnpecElectronics.pdf
Description
1A Low Dropout Fast Response Positive Adjustable Regulator
