APL1117D, APL1117R Datasheet - Anpec Electronics

APL1117D 1A Low Dropout Fast Response Positive Adjustable Regulator

The APL1117D/R is a low dropout three-terminal fixed 3.3V and 5.0V regulators with 1A output current capability. In order to obtain lower dropout voltage and faster transient response, which is critical for low voltage applications , the APL1117D/R has been optimized. The dropout voltage is guarante.

APL1117D Features

* Guaranteed Output Voltage Accuracy within 2% Fast Transient Response Guaranteed Dropout Voltage at Multiple Currents Load Regulation : 0.1% Typ. Line Regulation : 0.03% Typ. Low Dropout Voltage : 1.2V Typ. at I

APL1117R_AnpecElectronics.pdf

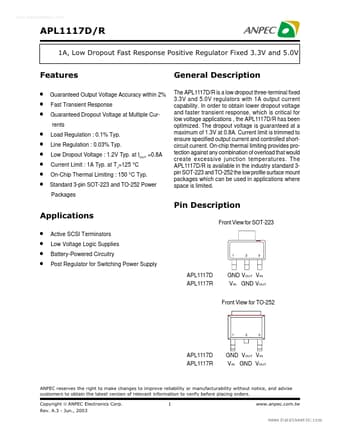

APL1117D Datasheet Preview — This datasheet PDF includes multiple part numbers: APL1117D, APL1117R. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

APL1117D, APL1117R

Manufacturer:

Anpec Electronics

File Size:

152.33 KB

Description:

1a low dropout fast response positive adjustable regulator.

Note:

This datasheet PDF includes multiple part numbers: APL1117D, APL1117R.
Please refer to the document for exact specifications by model.
