ASM5206C - VERY LOW-COST VOICE SYNTHESIZER

Product Overview

Apuls Intergrated Circuits

Part number	ASM5206C
Manufacturer	Apuls Intergrated Circuits
File Size	497.75 KB
Description	VERY LOW-COST VOICE SYNTHESIZER
Datasheet	ASM5206C Datasheet

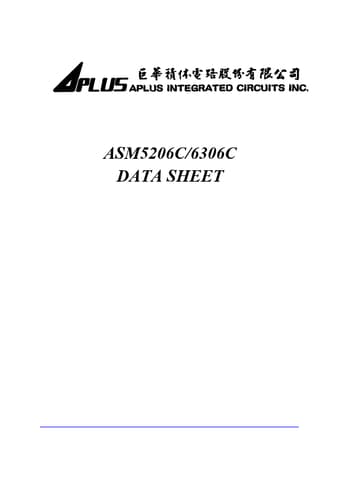

Additional preview pages of the ASM5206C datasheet.

The ASM5206C/6306C is very low cost voice synthesizer with 4-bit microprocessor.

including 4-bit ALU, ROM, RAM, I/O ports, timers, clock generator, watchdog timer(WDT), voice synthesizer, etc. It consists of 22 instructions in the device. With CMOS technology and halt function can minimize power dissipation. Its architecture is similar to RISC, with two stages of instruction pipeline. It allows all instructions to be executed in a single cycle, except for program branches and data table read instructions (which need two instruction cycles). 1.1 Feature Single power supply.
