ASM53AA (ASM51AA - ASM54AA) Crystal Controlled Oscillators

MODEL SPECIFICATIONS: MODEL ASM54AA Frequency Range Frequency Tolerance: (Fo) 13 -20 80 20 MHz ppm 1 TABLE 2.0 MODEL ASM51AA Frequency Range Frequency Tolerance: (Fo) 13 -25 80 25 MHz ppm 1 MODEL ASM52AA Frequency Range Frequency Tolerance: (Fo) 13 -50 80 50 MHz ppm 1 The Connor-Winfield models A.

ASM53AA Features

* 13 to 80 MHz 3.3V OPERATION OVERALL FREQUENCY TOLERANCE: ASM54AA ±20ppm ASM51AA ±25ppm ASM52AA ±50ppm ASM53AA ±100ppm TEMPERATURE RANGE: 0° to 70°C CERAMIC SURFACE MOUNT PACKAGE TAPE AND REEL PACKAGING ACMOS OUTPUT CHARACTERISTICS PARAMETER LOAD Voltage (High) (Low) Current (High) (Low) Duty Cycle

ASM51AA_Connor-Winfield.pdf

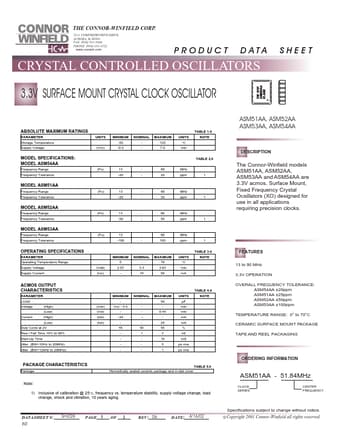

ASM53AA Datasheet Preview — This datasheet PDF includes multiple part numbers: ASM53AA, ASM51AA_Connor. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ASM53AA, ASM51AA_Connor

Manufacturer:

Connor-Winfield

File Size:

121.44 KB

Description:

(asm51aa - asm54aa) crystal controlled oscillators.

Note:

This datasheet PDF includes multiple part numbers: ASM53AA, ASM51AA_Connor.
Please refer to the document for exact specifications by model.
