ASM5I2305A

(ASM5I2305A / ASM5I2309A) 3.3 V Zero Delay Buffer

ASM5I2305A Features

* 15MHz to 133MHz operating range, compatible with CPU and PCI bus frequencies. Zero input - output propagation delay. Multiple low-skew outputs.

* www.DataSheet4U.com

* ASM5P2309A ASM5P2305A 133MHz frequencies, and has higher drive than the -1 devices. All parts have

ASM5I2305A General Description

ASM5P2309A is a versatile, 3.3V zero-delay buffer designed to distribute high-speed clocks. It accepts one reference input and drives out nine low-skew clocks. It is available in a 16-pin package. The ASM5P2305A is the eight-pin version of the ASM5P2309A. It accepts one reference input and drives ou.

ASM5I2305A Datasheet (427.28 KB)

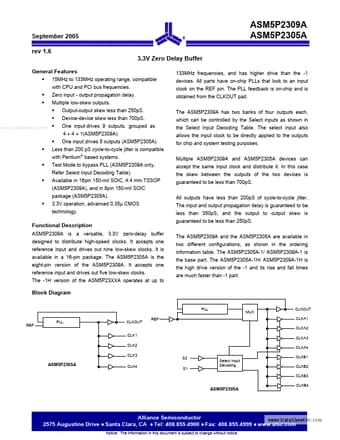

Preview of ASM5I2305A PDF

Datasheet Details

Part number:

ASM5I2305A

Manufacturer:

Alliance Semiconductor

File Size:

427.28 KB

Description:

(asm5i2305a / asm5i2309a) 3.3 v zero delay buffer.
