ASM5I2304A

3.3 V Zero Delay Buffer

ASM5I2304A Features

* Zero input - output propagation delay, adjustable by capacitive load on FBK input. Multiple configurations - Refer “ASM5P2304A www.DataSheet4U.com ASM5P2304A the REF pin. The PLL feedback is required to be driven to FBK pin, and can be obtained from one of the outputs. The input-to-output propagat

ASM5I2304A General Description

ASM5P2304A is a versatile, 3.3V zero-delay buffer designed to distribute high-speed clocks in PC, workstation, datacom, telecom and other high-performance applications. It is available in 8 pin package. The part has an on-chip PLL which locks to an input clock presented on Block Diagram FBK CLKA1 R.

ASM5I2304A Datasheet (338.68 KB)

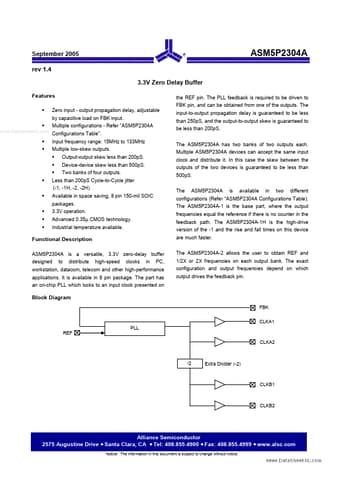

Preview of ASM5I2304A PDF

Datasheet Details

Part number:

ASM5I2304A

Manufacturer:

Alliance Semiconductor

File Size:

338.68 KB

Description:

3.3 v zero delay buffer.
