ASM5I23S08A

3.3V Zero Delay Buffer

ASM5I23S08A Features

* Zero input - output propagation delay, adjustable by capacitive load on FBK input. Multiple configurations Refer “ASM5P23S08A Configurations” Table. Input frequency range: 15MHz to 133MHz Multiple low-skew outputs. o Output-output skew less than 200pS. o Devic

ASM5I23S08A General Description

ASM5P23S08A is a versatile, 3.3V zero-delay buffer designed to distribute high-speed clocks. It is available in a 16 pin package. The part has an on-chip PLL, which locks to an input clock, presented on the REF pin. The PLL feedback is required to be driven to FBK pin, and can be obtained from one o.

ASM5I23S08A Datasheet (443.79 KB)

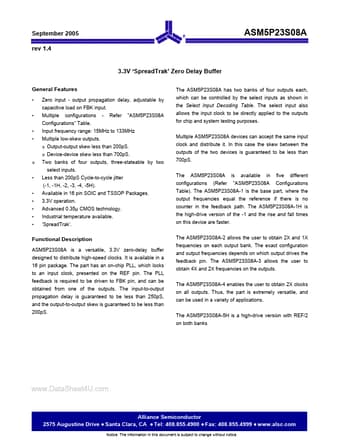

Preview of ASM5I23S08A PDF

Datasheet Details

Part number:

ASM5I23S08A

Manufacturer:

Alliance Semiconductor Corporation

File Size:

443.79 KB

Description:

3.3v zero delay buffer.
