ASM5P2308A

3.3V Zero Delay Buffer

Alliance Semiconductor Corporation

ASM5P2308A Features

* Zero input - output propagation delay, adjustable by capacitive load on FBK input.

* Multiple configurations - Refer “ASM5P2308A Configurations “ Table.

* Input frequency range: 15MHz to 133MHz Multiple low-skew outputs.

* Output-output

ASM5P2308A General Description

ASM5P2308A is a versatile, 3.3V zero-delay buffer designed to distribute high-speed clocks. It is available in a 16 pin package. The part has an on-chip PLL which locks to an input clock presented on the REF pin. The PLL feedback is required to be driven to FBK pin, and can be obtained from one of t.

ASM5P2308A Datasheet (417.19 KB)

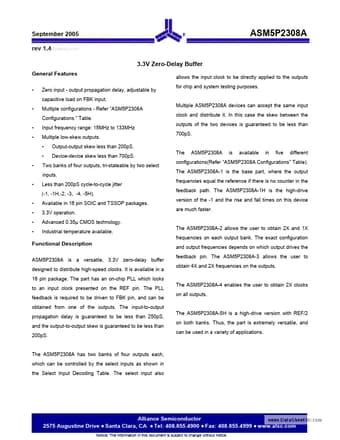

ASM5P2308A Datasheet Preview — Preview of ASM5P2308A PDF

Datasheet Details

Part number:

ASM5P2308A

Manufacturer:

Alliance Semiconductor Corporation

File Size:

417.19 KB

Description:

3.3v zero delay buffer.
