ASM5P2305A

(ASM5P2305A / ASM5P2309A) 3.3V Zero Delay Buffer

ASM5P2305A Features

* 15MHz to 133MHz operating range, compatible with CPU and PCI bus frequencies. Zero input - output propagation delay. Multiple low-skew outputs.

* Output-output skew less than 250pS. Device-device skew less than 700pS. One input drives 9 outpu

ASM5P2305A General Description

ASM5P2309A is a versatile, 3.3V zero-delay buffer designed to distribute high-speed clocks. It accepts one reference input and drives out nine low-skew clocks. It is available in a 16-pin package. The ASM5P2305A is the eight-pin version of the ASM5P2309A. It accepts one reference input and drives ou.

ASM5P2305A Datasheet (429.20 KB)

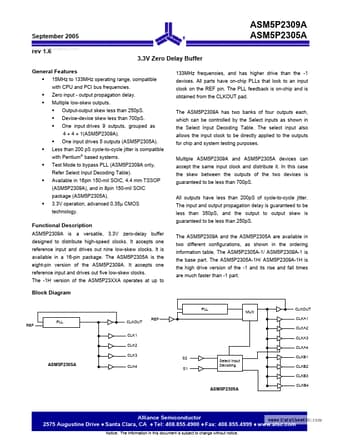

Preview of ASM5P2305A PDF

Datasheet Details

Part number:

ASM5P2305A

Manufacturer:

Alliance Semiconductor Corporation

File Size:

429.20 KB

Description:

(asm5p2305a / asm5p2309a) 3.3v zero delay buffer.
