ASM5P2304A Datasheet, Buffer, Alliance Semiconductor Corporation

ASM5P2304A Features

  • Buffer Zero input - output propagation delay, adjustable by capacitive load on FBK input. Multiple configurations - Refer “ASM5P2304A Configurations Table”. Input frequency range: 15MHz to 133

PDF File Details

Part number:

ASM5P2304A

Manufacturer:

Alliance Semiconductor Corporation

File Size:

340.17kb

Download:

📄 Datasheet

Description:

3.3v zero delay buffer. ASM5P2304A is a versatile, 3.3V zero-delay buffer designed to distribute high-speed clocks in PC, workstation, datacom, telecom and o

Datasheet Preview: ASM5P2304A 📥 Download PDF (340.17kb)

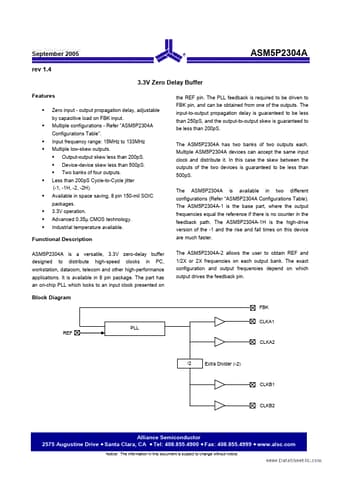

Page 2 of ASM5P2304A Page 3 of ASM5P2304A

ASM5P2304A Application

  • Applications It is available in 8 pin package. The part has an on-chip PLL which locks to an input clock presented on Block Diagram FBK CLKA1 REF
