ASM58 Datasheet - ETC

ASM58 - SSI Interface Absolute Rotary Encoder

Power supply Power supply Positive cycle line Negative cycle line Positive transmission data Negative transmission data Not wired, reserved Input for selection of counting direction Zero setting input Not wired, reserved Not wired, reserved Not wired, reserved 5 PEPPERL+FUCHS Pepperl+Fuchs® Inc.

SSI Interface Absolute Rotary Encoder Technical Data Electrical Supply Voltage Current Consumption Output Code Linearity Counting Direction (shaft end view) Interface Type Transfer rate Monoflop time Resolution Bits/steps per turn Bits/number of turns Overall Resolution Single-turn Multi-turn Standard Conformity Inputs Type 10-30 VDC ≤140 mA Gray, binary ±1 LSB Clockwise ascending (factory preset) SSI 0.05-1.5 MBaud 20 ± 10 ms 16-bit/65536 max.

12-bit/4096 max.

16-bit 28-bit RS-422 Selection of

ASM58_ETC.pdf

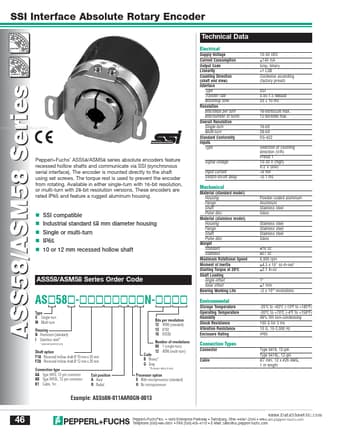

Preview of ASM58 PDF
ASM58 Datasheet Preview Page 2 ASM58 Datasheet Preview Page 3

Datasheet Details

Part number:

ASM58

Manufacturer:

ETC

File Size:

222.70 KB

Description:

Ssi interface absolute rotary encoder.
