AK4140

Digital BTSC Decoder

AK4140 Features

* † Capable of receiving 4.5MHz intercarrier sound and FM demodulation † Alignment Free Digital BTSC decoding (Mono/Stereo/SAP) † Programmable pilot/SAP/noise detection threshold † Automatic return to mono dependant on pilot/noise level † Mono/Stereo/SAP selectable output † Digital volume control † So

AK4140 General Description

The AK4140 is a BTSC decoder, which is optimized for Digital STB/TV application. The AK4140 achieves high audio performance using original demodulation techniques for 4.5MHz inter-carrier sound, and the digital BTSC decoding architecture using digital dbx-TV® technology licensed from THAT Corporatio.

AK4140 Datasheet (596.73 KB)

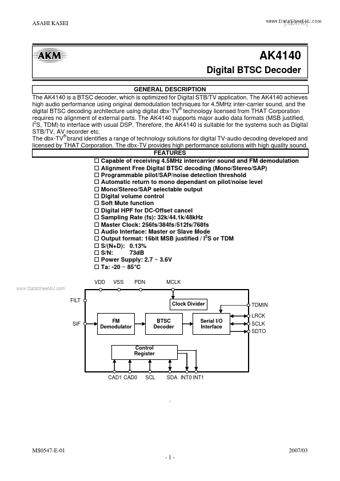

Preview of AK4140 PDF

Datasheet Details

Part number:

AK4140

Manufacturer:

Asahi Kasei Microsystems

File Size:

596.73 KB

Description:

Digital btsc decoder.
