AK4141

NICAM/A2/EIA-J Digital Stereo Decoder

AK4141 Features

* 1. Stereo Decoding † Capable of receiving Sound Intermediate Frequency (SIF) with Selector and FM Demodulation † Automatic Gain Control (AGC: 100mVpp ~ 1Vpp) for SIF input † Alignment Free Digital Stereo Decoding EIA-J NICAM: B/G, L, I, D/K with FM/AM Mono A2: B/G, D/K1, D/K2, D/K3, M/N † Automatic/

AK4141 General Description

The AK4141 is a NICAM/A2/EIA-J stereo decoder, which is optimized for Digital TV application. The AK4141 achieves no alignment, few external components and high audio performance by digital stereo decoding architecture. The AK4141 integrates a stereo sample rate converter (SRC) for asynchronous digi.

AK4141 Datasheet (322.53 KB)

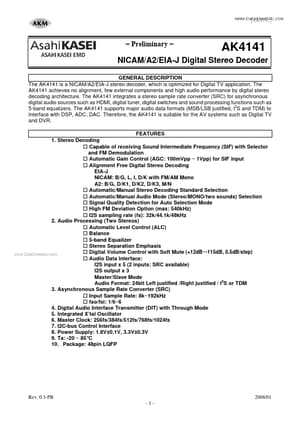

Preview of AK4141 PDF

Datasheet Details

Part number:

AK4141

Manufacturer:

Asahi Kasei Microsystems

File Size:

322.53 KB

Description:

Nicam/a2/eia-j digital stereo decoder.
