AK4554 Datasheet - Asahi Kasei Microsystems

AK4554 - Low Power & Small Package 16-bit CODEC

The AK4554 is a low voltage 16bit A/D & D/A converter for portable digital audio system.

In the AK4554, the loss of accuracy form clock jitter is also improved by using SCF techniques for on-chip post filter.

Analog signal input/output of the AK4554 are single-ended, therefore, any external filters

AK4554 Features

* † HPF for DC-offset cancel (fc=3.4Hz) † Single-ended ADC - S/(N+D): 80dB@VDD=2.5V - Dynamic Range, S/N: 89dB@VDD=2.5V † Single-ended DAC - Digital de-emphasis for 32kHz, 44.1kHz, 48kHz sampling - S/(N+D): 85dB@VDD=2.5V - Dynamic Range, S/N: 92dB@VDD=2.5V † Audio I/F format: MSB First, 2’s Compliment

AK4554_AsahiKaseiMicrosystems.pdf

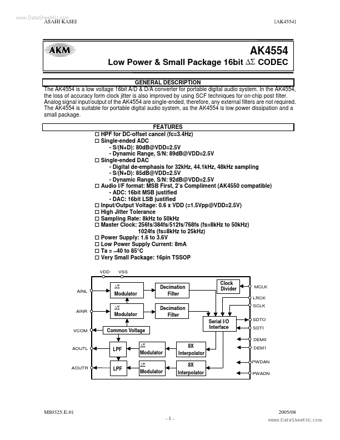

Preview of AK4554 PDF
AK4554 Datasheet Preview Page 2 AK4554 Datasheet Preview Page 3

Datasheet Details

Part number:

AK4554

Manufacturer:

Asahi Kasei Microsystems

File Size:

240.74 KB

Description:

Low power & small package 16-bit codec.
