AK5394A Datasheet - Asahi Kasei Microsystems

AK5394A - Super High Performance 192kHz 24-Bit ADC

The AK5394A is a 24bit, 192kHz sampling 2ch A/D Converter for professional digital audio systems.

The modulator in the AK5394A uses the new developed advanced multi bit architecture.

This new architecture achieves the wide dynamic range and wide bandwidth, while keeping superior distortion character

AK5394A Features

* ‡ 128x Oversampling ‡ New advanced multi bit Architecture ADC ‡ Sampling Rate: 1kHz ∼ 216kHz ‡ Full Differential Inputs ‡ S/(N+D): 110dB ‡ DR: 123dB ‡ S/N: 123dB ‡ High Performance Linear Phase Digital Anti-Alias filter

* Passband: 0 ∼ 21.768kHz(@fs=48kHz)

* Ripple: 0.001dB

AK5394A_AsahiKaseiMicrosystems.pdf

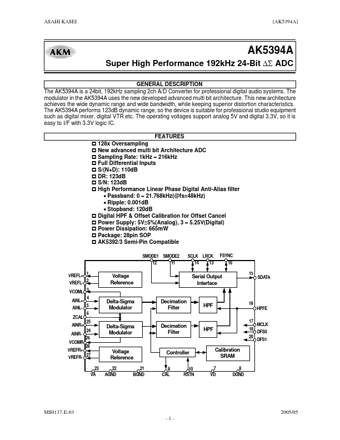

Preview of AK5394A PDF
AK5394A Datasheet Preview Page 2 AK5394A Datasheet Preview Page 3

Datasheet Details

Part number:

AK5394A

Manufacturer:

Asahi Kasei Microsystems

File Size:

182.36 KB

Description:

Super high performance 192khz 24-bit adc.
