ACPL-W302-060E Datasheet, Optocouplers, Avago Technologies

ACPL-W302-060E Features

• Optocouplers x High speed response. x Ultra high CMR. x Bootstrappable supply current. x Available in Stretched SO-6 package x Package Clearance/Creepage at 8mm (ACPL-W302) x Safety Approval: UL1577

PDF File Details

Part number:

ACPL-W302-060E

Manufacturer:

Avago Technologies

File Size:

205.63kb

Download:

📄 Datasheet

Description:

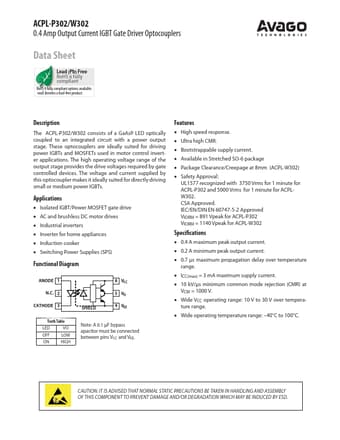

0.4 amp output current igbt gate driver optocouplers. The ACPL-P302/W302 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. These optocouplers a

ACPL-W302-060E Application

• Applications The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and
