ACPL-W343, ACPL-P343 - 4.0 Amp Output Current IGBT Gate Drive Optocoupler

ACPL-W343 Description

ACPL-P343 and ACPL-W343 4.0 Amp Output Current IGBT Gate Drive Optocoupler with Rail-to-Rail Output Voltage in Stretched SO6 Data Sheet .
The ACPL-P343/W343 contains an AlGaAs LED, which is optically coupled to an integrated circuit with a power output stage.

ACPL-W343 Applications

* The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and high peak output current supplied by this optocoupler make it ideally suited for direct driving IGBT with ratings up to 1200 V / 200 A. For IGBTs with higher ratings

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACPL-W343, ACPL-P343. Please refer to the document for exact specifications by model.

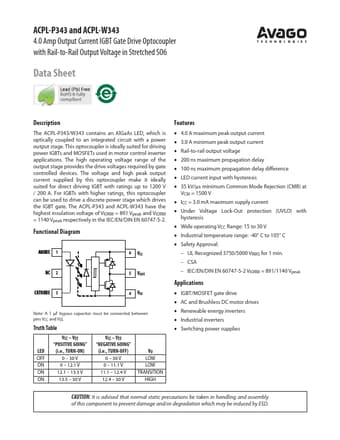

datasheet Preview Page 2 datasheet Preview Page 3
