ACPL-W349 Datasheet, Optocoupler, Broadcom

ACPL-W349 Features

  • Optocoupler
  • 2.5-A maximum peak output current
  • Wide operating VCC range: 15V to 30V
  • 110-ns maximum propagation delay
  • 50-ns maximum propagation delay differenc

PDF File Details

Part number:

ACPL-W349

Manufacturer:

Broadcom

File Size:

1.08MB

Download:

📄 Datasheet

Description:

2.5-amp output current sic/gan mosfet and igbt gate drive optocoupler. The Broadcom® ACPL-P349/W349 contains an AlGaAs LED, which is optically coupled to an integrated circuit with a power output stage. T

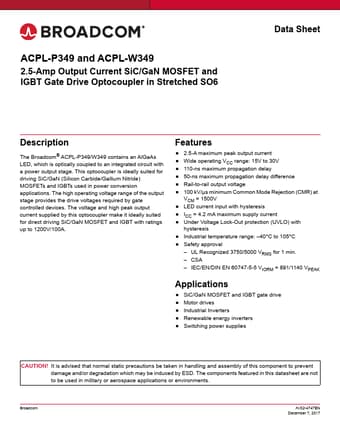

Datasheet Preview: ACPL-W349 📥 Download PDF (1.08MB)
Page 2 of ACPL-W349 Page 3 of ACPL-W349

ACPL-W349 Application

  • Applications The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and
