ACPL-W456 Datasheet - Avago Technologies

(ACPL-P456/W456) Intelligent Power Module and Gate Drive Interface Optocouplers

ACPL-W456 Features

* x Performance Specified for Common IPM Applications Over Industrial Temperature Range. x Short Maximum Propagation Delays x Minimized Pulse Width Distortion (PWD) x Very High Common Mode Rejection (CMR) x High CTR. x Available in Stretched SO-6 package with 8 mm creepage and clearance. x Safety Appr

ACPL-W456 General Description

The ACPL-P456 and ACPL-W456 contain a GaAsP LED optically coupled to an integrated high gain photo detector. Minimized propagation delay difference between devices make these optocouplers excellent solutions for improving inverter efficiency through reduced switching dead time. Specifications and pe.

ACPL-W456 Datasheet (314.48 KB)

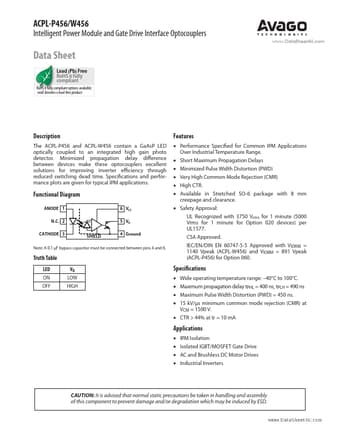

Preview of ACPL-W456 PDF

Datasheet Details

Part number:

ACPL-W456

Manufacturer:

Avago Technologies

File Size:

314.48 KB

Description:

(acpl-p456/w456) intelligent power module and gate drive interface optocouplers.
ACPL-P456/W456 Intelligent Power Module and Gate Drive Interface Optocouplers www.DataSheet4U.com Data Sheet Lead (Pb) Free RoHS 6 fully compliant Ro.
